C400 Multi-use woodworking machine
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | Easwon |
| Πιστοποίηση: | ISO |
| Αριθμό μοντέλου: | C400 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 σετ |
|---|---|
| Τιμή: | negotiated |
| Συσκευασία λεπτομέρειες: | Χαρτοκιβώτιο |
| Χρόνος παράδοσης: | Μέσα σε 20 ημέρες |
| Όροι πληρωμής: | T/t ή l/c |
| Δυνατότητα προσφοράς: | 500 σετ ανά μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Μέγιστο πλάτος επιπέδου: | 400mm | Μέγιστο βάθος στρίβωσης: | 4 χιλιοστά |
|---|---|---|---|
| Μέγιστο πλάτος πριόνου: | 700mm | Μέγιστο να πριονίσει πάχος: | 75mm/90mm |
| Μέγιστο βάθος άλεσης: | 65 χιλιοστά | Μέγιστο. διάμετρος κοπής φρεζαρίσματος: | 180mm |
| Συνολική ισχύς: | 12kW | Κατάσταση: | Νέος |
| Εγγύηση: | 1 έτος | ||
| Επισημαίνω: | C400 woodworking thicknesser machine,multi-use woodworking thicknesser,woodworking machine with warranty |
||
Περιγραφή προϊόντων
C400 multi-use woodworking machine
C400 Multipurpose Universal Combined Woodworking Machine is a 5-in-1 solution integrating sawing, planing, thicknessing, drilling, and milling functions. Designed for versatility and compactness, it’s ideal for small workshops or multi-purpose woodworking projects, delivering efficiency without compromising performance.
Features:
- Panel saw sliding beam
- Cast iron construction
- 3 x 4kw class 1 motor
- Micro adjustable spindle moulder fence
- Sturdy swinging arm squaring frame
- Accurate cross cut fence with flipstops
- Inward parallel swing planer table
- Fully adjustable setting
C400 multi-use woodworking machine specification:
| Model No. | C400 |
| Planner | |
| Working table size | 400x1800mm |
| Cutter diameter | 70mm |
| Spindle speed | 5700rpm |
| Cutter quantity | 3pcs |
| Cutter size | 400x25x3mm |
| Max. planning width | 400mm |
| Max planning depth | 4mm |
| Thicknesser | |
| Working table size | 400x600mm |
| Feeding speed | 7m/min |
| Max. working height | 220mm |
| Min. working height | 4mm |
| Spindle speed | 5700rpm |
| Max. working depth | 4mm |
| Circular saw | |
| Working table size | 326x1112mm |
| Speed of main saw spindle | 4500/5700rpm |
| Main saw diameter | 300mm |
| Main saw spindle diameter | 30mm |
| Max. cutting height 45°/90° | 75/95mm |
| Max. cutting width | 700mm |
| Tilting saw blade | 45° |
| Max. cutting height of scoring saw | 75mm |
| Speed of scoring saw spindle | 7000rpm |
| Scoring saw blade diameter | 90mm |
| Scoring saw spindle | 22mm |
| Mortiser | |
| Working table size | 250x500mm |
| Transverse stroke | 205mm |
| Longitudinal stroke | 95mm |
| Vertical stroke | 90mm |
| Bit diameter | 16mm |
| Spindle speed | 5700rpm |
| Milling | |
| Working table size | 290x1112mm |
| Spindle speed | 7000/4400/3100/2000rpm |
| Milling spindle diameter | 30/35/50mm |
| Milling spindle length | 105mm |
| Milling spindle vertical stroke | 115mm |
| Max. milling cutter diameter | 180mm |
| Max. milling depth | 65mm |
| Sliding table | |
| Sliding table size | 1800x315mm |
| Sliding table stroke | 1800/2200mm |
| Total power | 12kw (4kw x 3) |
| Voltage | 220V or 380V |
| Overall dimension | 2300x1430x1080mm |
| Weight | 800kg |
| Package | Wooden case |

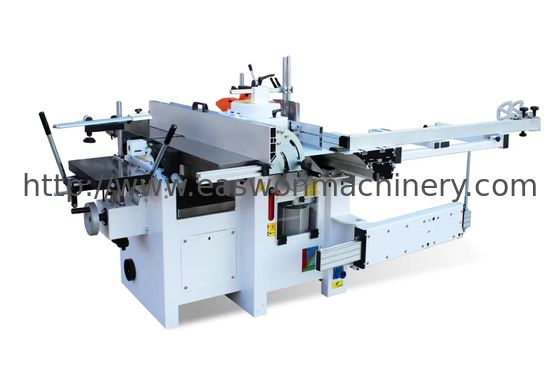

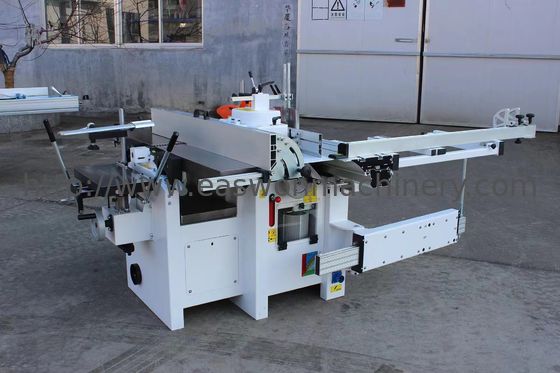

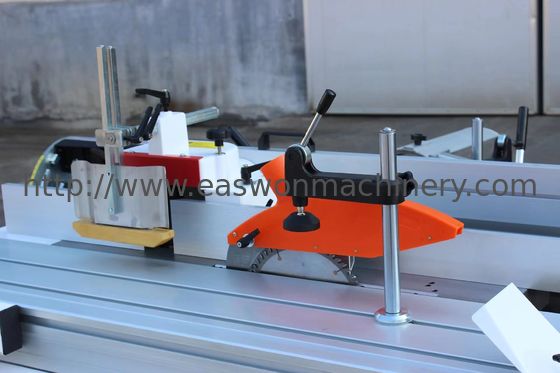

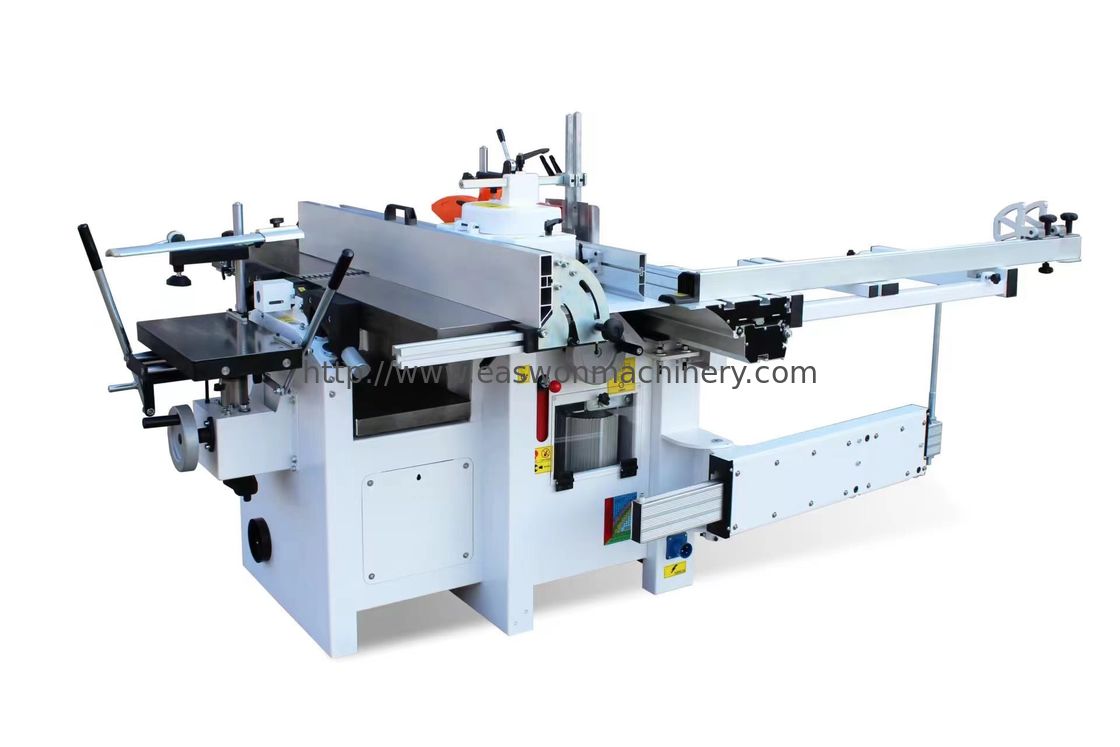

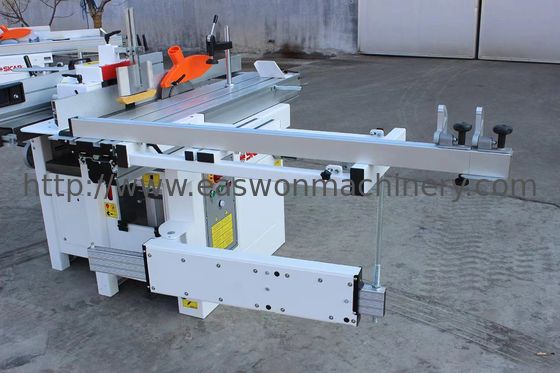

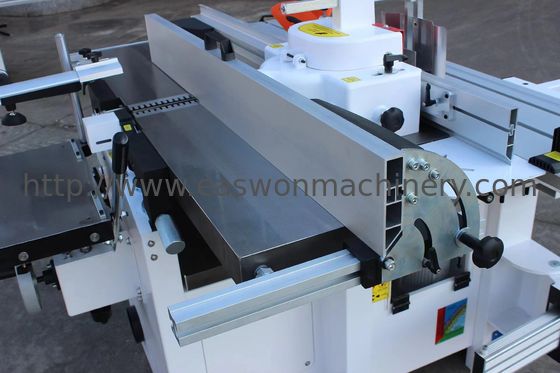

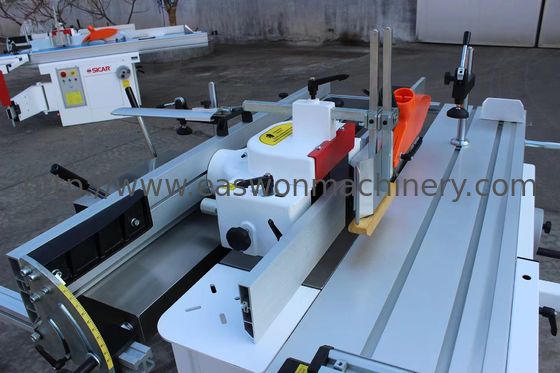

C400 Multi-use woodworking machine details:
 | |
| |
|
| |
| |
Package and shipping:
The machine is packed by plywood case, which is suitable for FCL and LCL shipping.
| |
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
5. Supply operational manual and maintance manual in English.
